C Channels

Name: C Channels
Brand: Health of Mind Art
Price: 49.99 AUD
Availability: InStock

$49.99

Tax included. Shipping calculated at checkout.

[{"id":39714105983142,"title":"800","option1":"800","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"C Channels - 800","public_title":"800","options":["800"],"price":4999,"weight":3000,"compare_at_price":null,"inventory_management":"shopify","barcode":"05983142","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":39714106048678,"title":"900","option1":"900","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"C Channels - 900","public_title":"900","options":["900"],"price":5299,"weight":3200,"compare_at_price":null,"inventory_management":"shopify","barcode":"06048678","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":39714106081446,"title":"1000","option1":"1000","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"C Channels - 1000","public_title":"1000","options":["1000"],"price":5899,"weight":3500,"compare_at_price":null,"inventory_management":"shopify","barcode":"06081446","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":39714106114214,"title":"1100","option1":"1100","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"C Channels - 1100","public_title":"1100","options":["1100"],"price":6199,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":"06114214","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43660790759677,"title":"1200","option1":"1200","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"C Channels - 1200","public_title":"1200","options":["1200"],"price":6699,"weight":3800,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Please note : C Channels are NOT to be used with green/wet timber , they are not an alternative to use wet timber . Timber must be below 15% moisture content

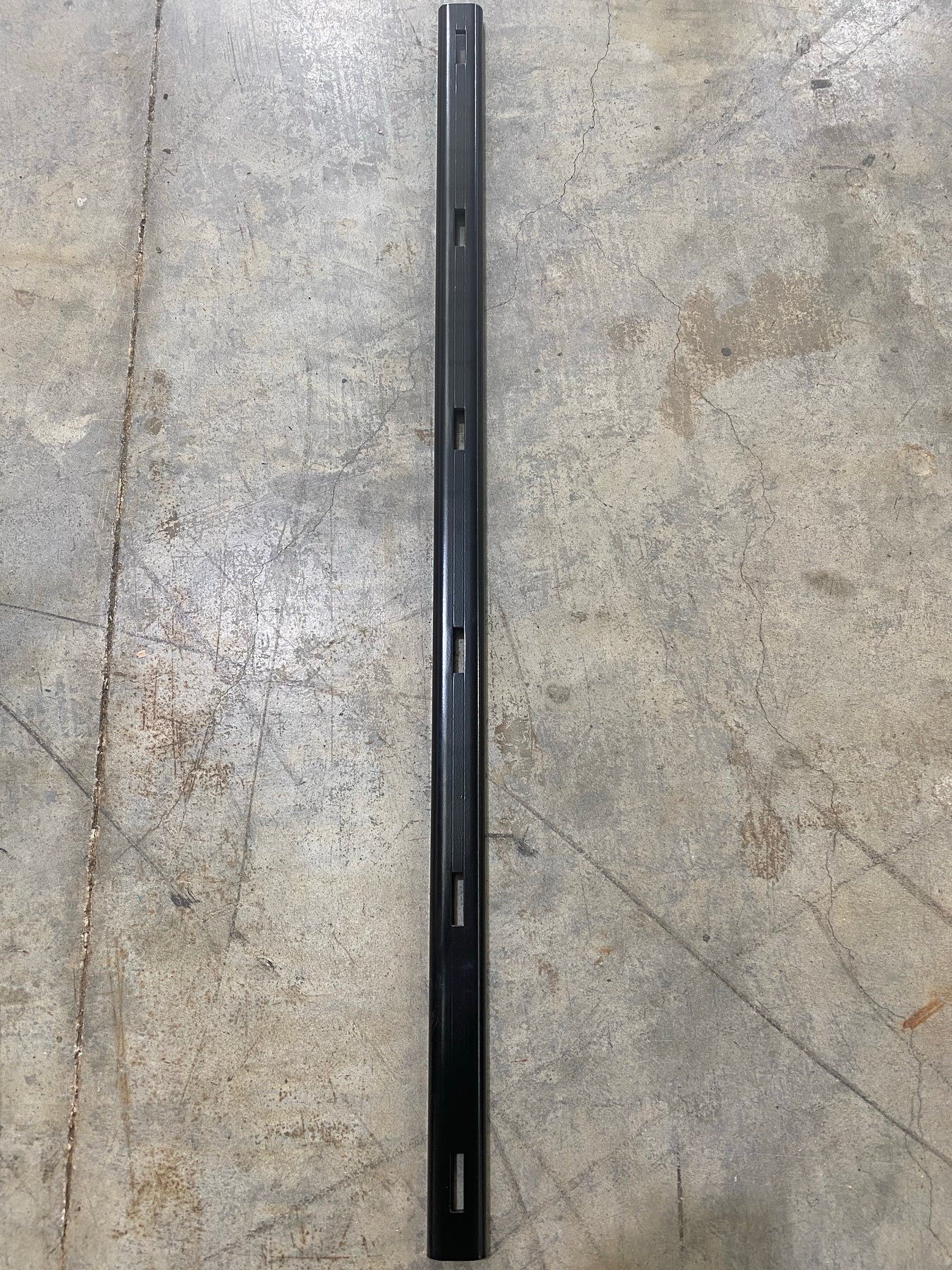

Our channels are a proper reinforced c channel, NOT an L bracket or something similar. These cheap alternatives will NOT provide stability . Using cheap steel or steel that has not been designed for timber movement can be a disaster waiting to happen, as movement in timber can potentially bend cheap alternatives . This process can not be altered and it’s one of the most important processes you can pay attention to depending on the job and timber itself ( ask us for further info around this )

Prevent your tables from moving on you over time.

The channel comes in lengths of 800, 900 ,1000,1100 and 1200 If you are require a size that does not match up to any of these you can easily cut them to length using a metal saw.

The channel has been powder coated black to give a hard wearing finish. Follow the link below for installation.

Specifications:

Dimensions (OD)-

5mm Thickness
40mm Width
20mm Height

Installation -

Min. Recess Depth 15-17mm (top flat bar exposed)
Full Recessed Depth 22-24mm (flush/slightly below surface)

Number of Slots/Fasteners Required (per channel)

800mm & 900mm - 5
1000mm & 1100mm - 6
1200mm - 7

Channels are 6mm thick steel and 40mm wide and 20mm high

https://youtu.be/iRJW8cWVhIc
